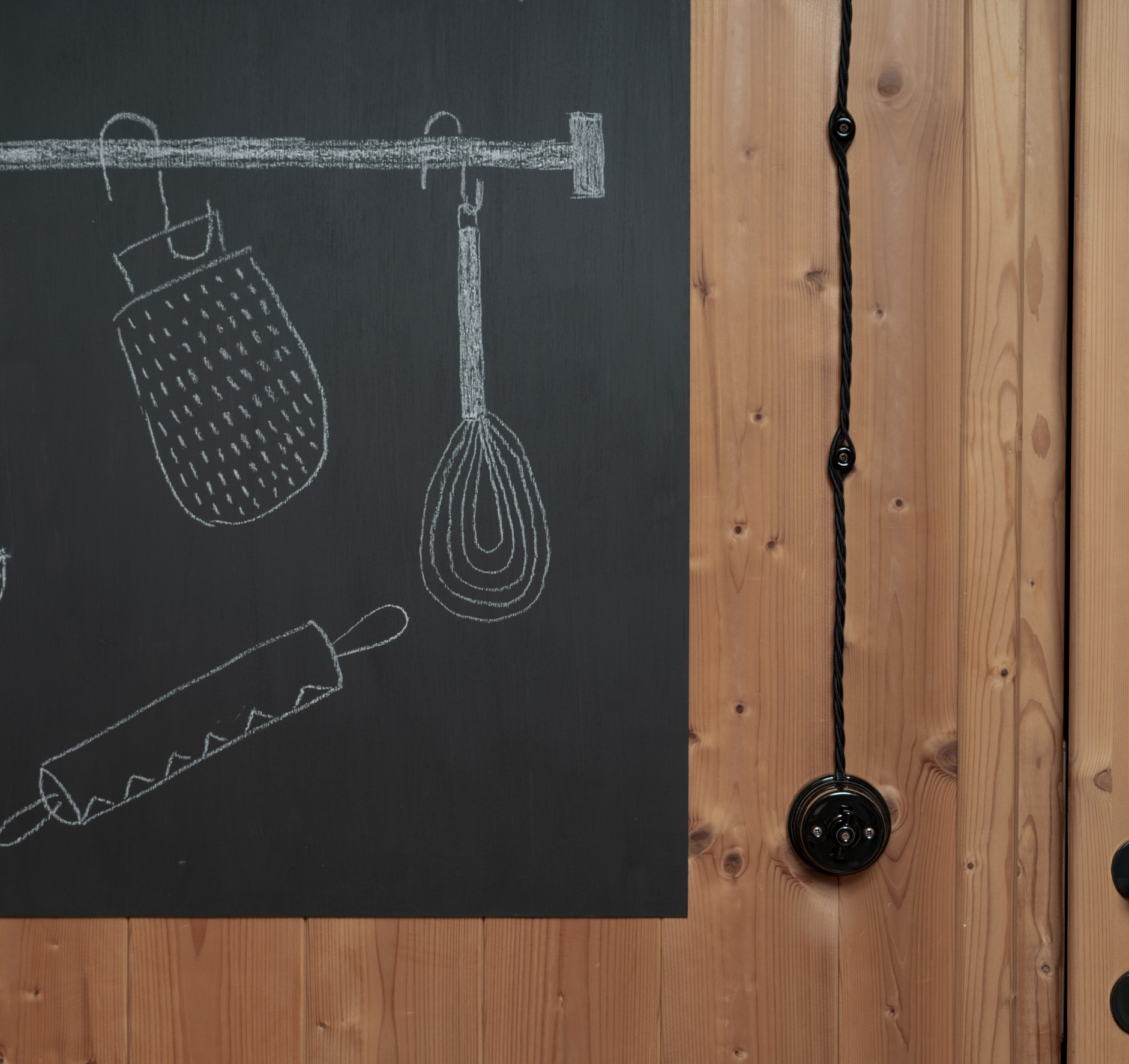

PORCELAIN ROTARY SWITCH

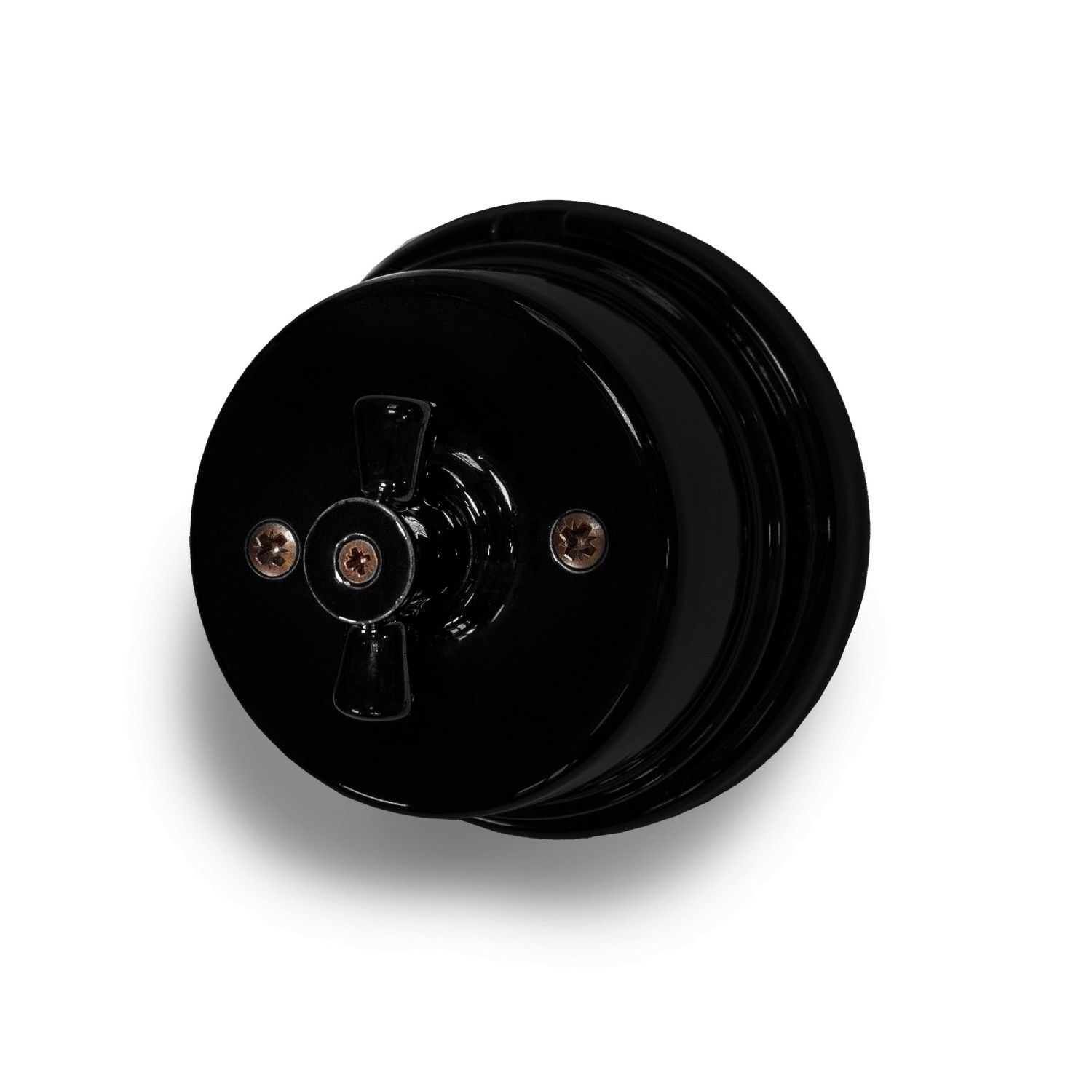

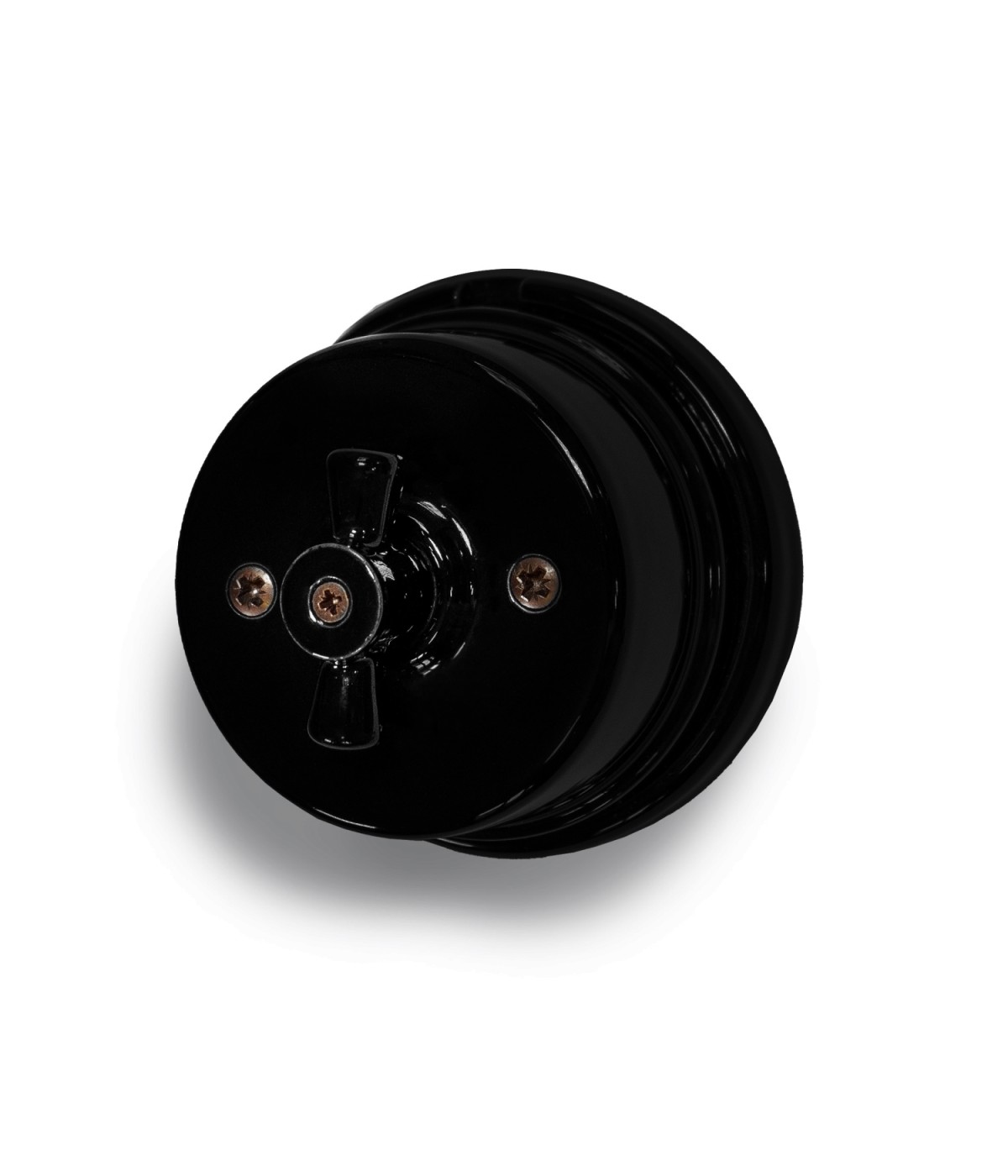

Porcelain rotary switch
10A - 250V
Art. 40.450 - ean 805177940404508 - Box 1 pz.
Packaging: 1 pz.
For installation it is recommended to contact specialised personnel
ONLY FOR INDOOR USE
UE DECLARATION OF CONFORMITY
BLACK ROTARY SWITCH
TECHNICAL DATA SHEET

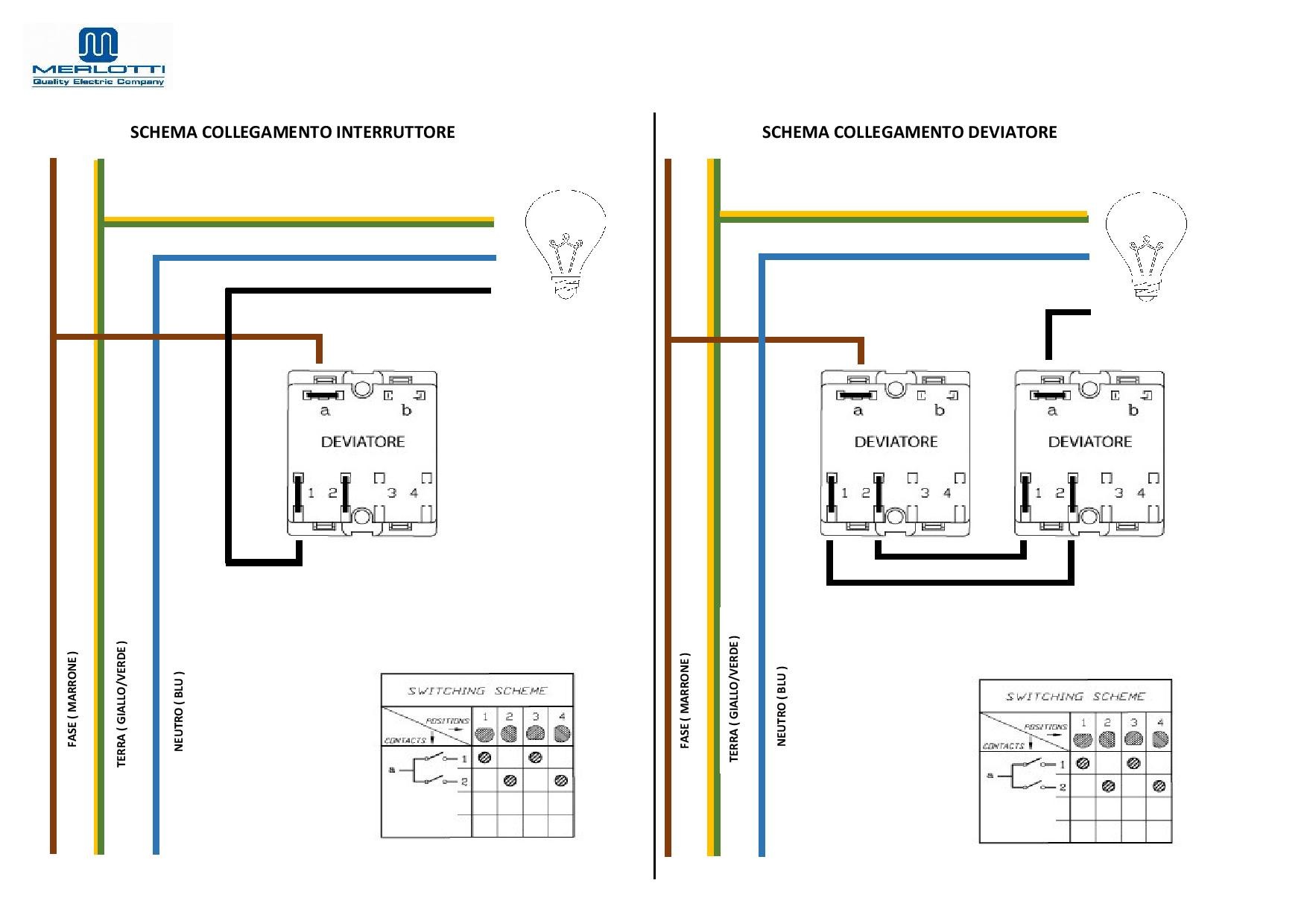

TECHNICAL DATA SHEET ROTARY SWITCH
COLOUR

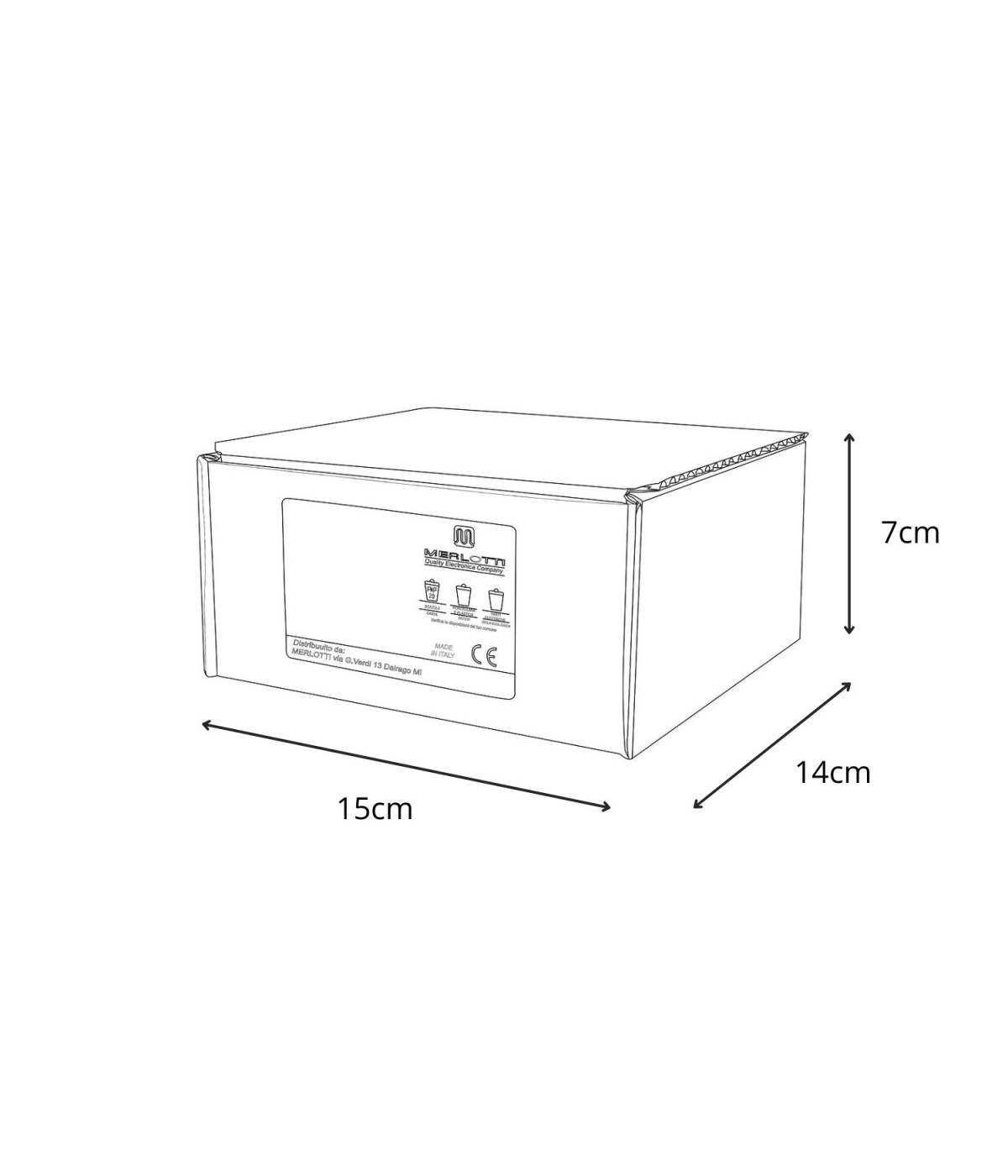

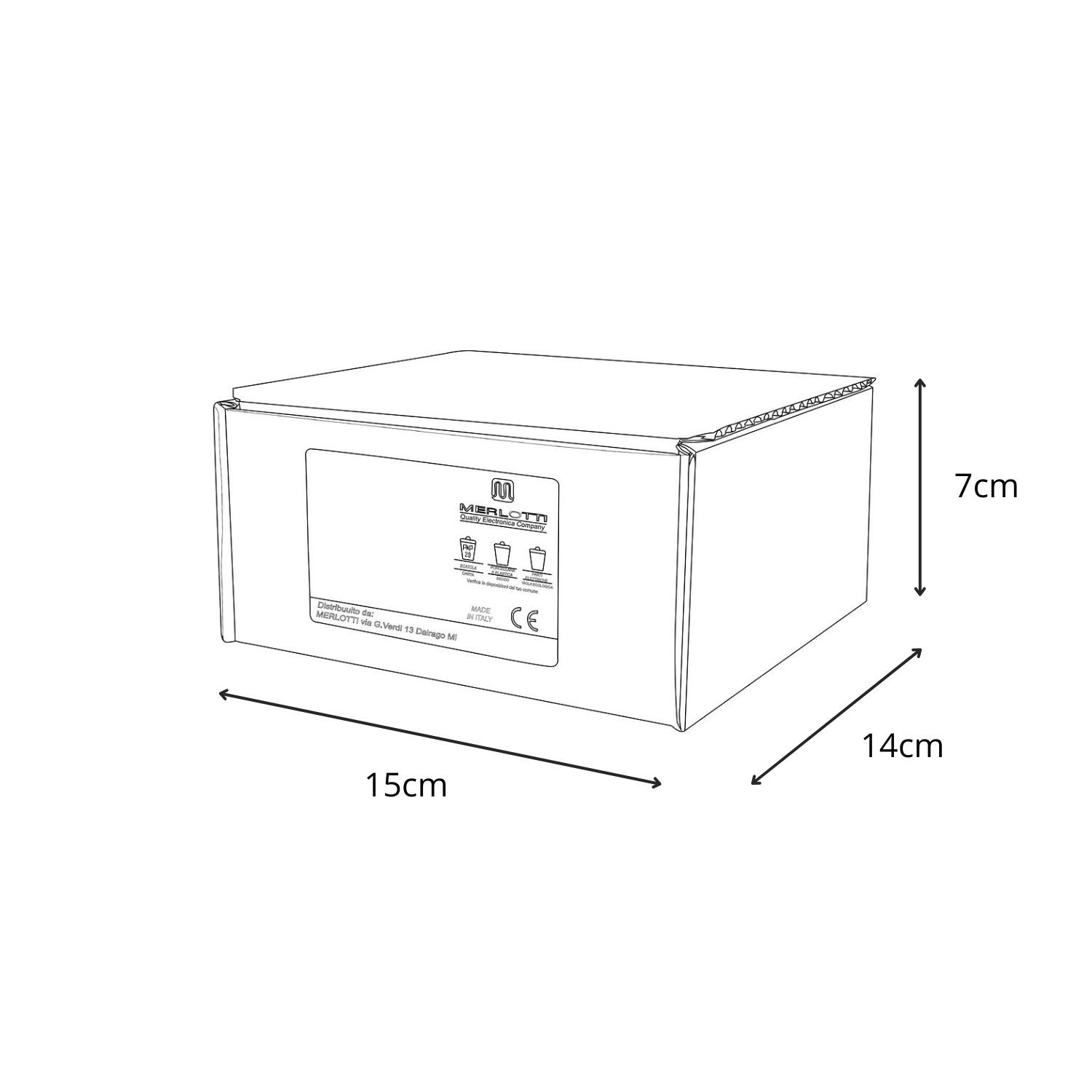

PACKAGING
Purchasing on the merlotticavi.it website is reserved only for registered companies.
Technical data
| Rated voltage: | 250V AC |
|---|---|
| Rated current: | 10A |
| Ingress protection: | IP20 |
| Connection type: | Terminal 6,3x0,8mm |
| Number of switch positions: | 4 |
| Size: | Ø 80mm – H 50mm |
| Material: | Porcelain |
| Color: | Shiny black |
| Holes for cable entry: | 1 |
Other information
Aggiungi qui il testo dell’intestazione

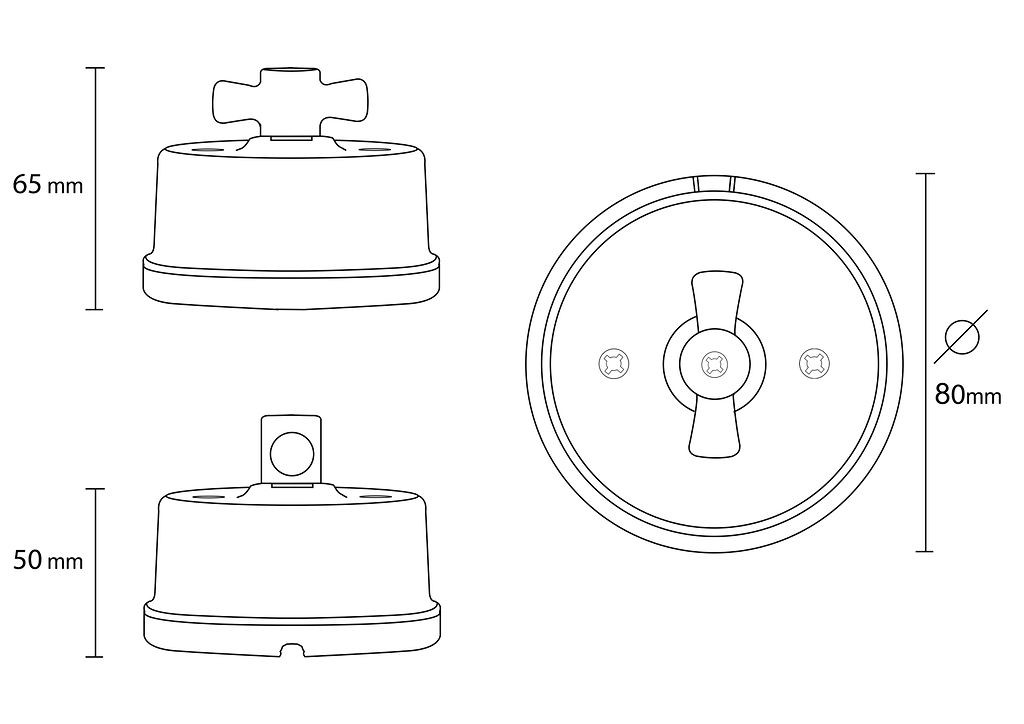

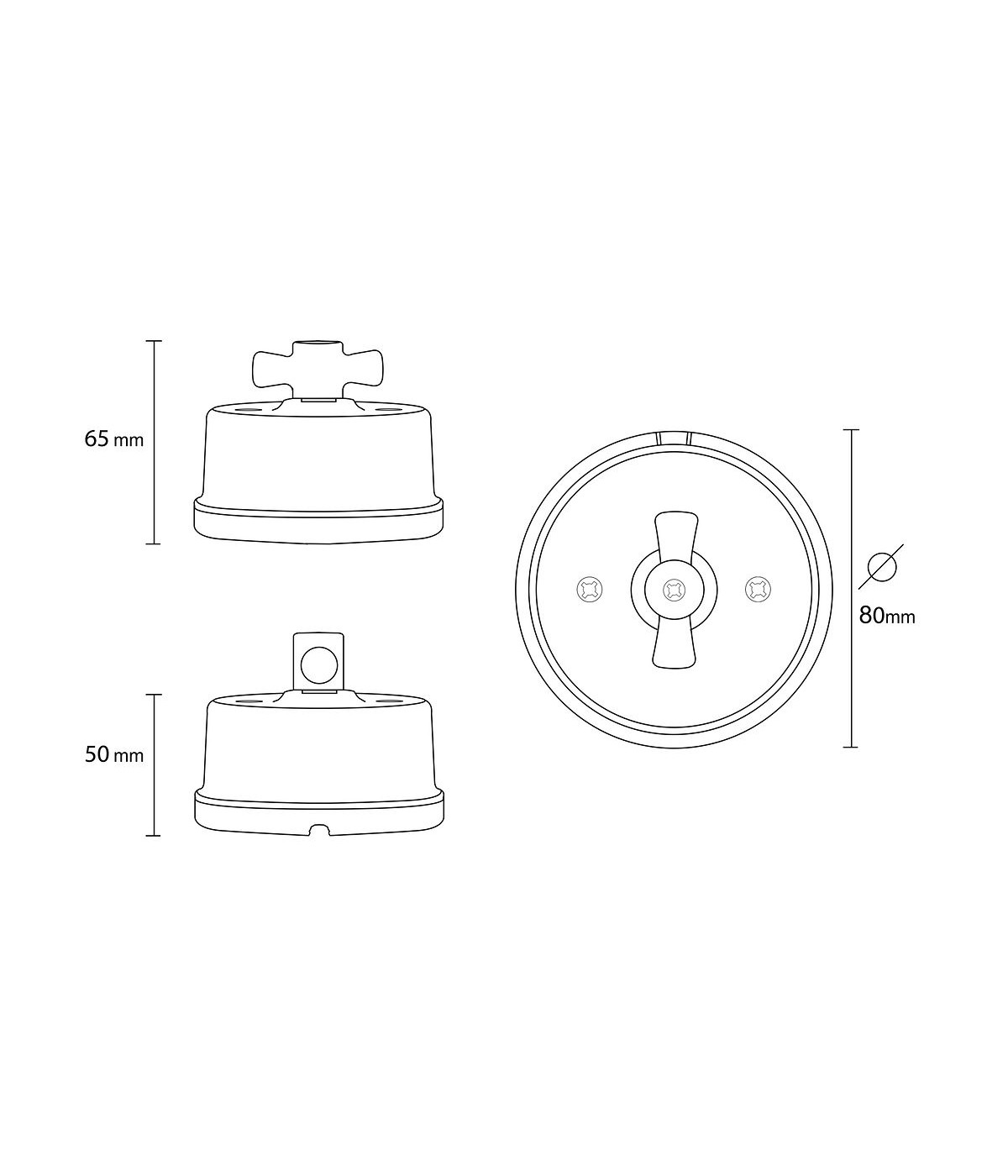

Product dimensions:
Diameter: 8 cm.
Height: 5 cm.
For installation it is recommended to contact specialised personnel
ONLY FOR INDOOR USE
