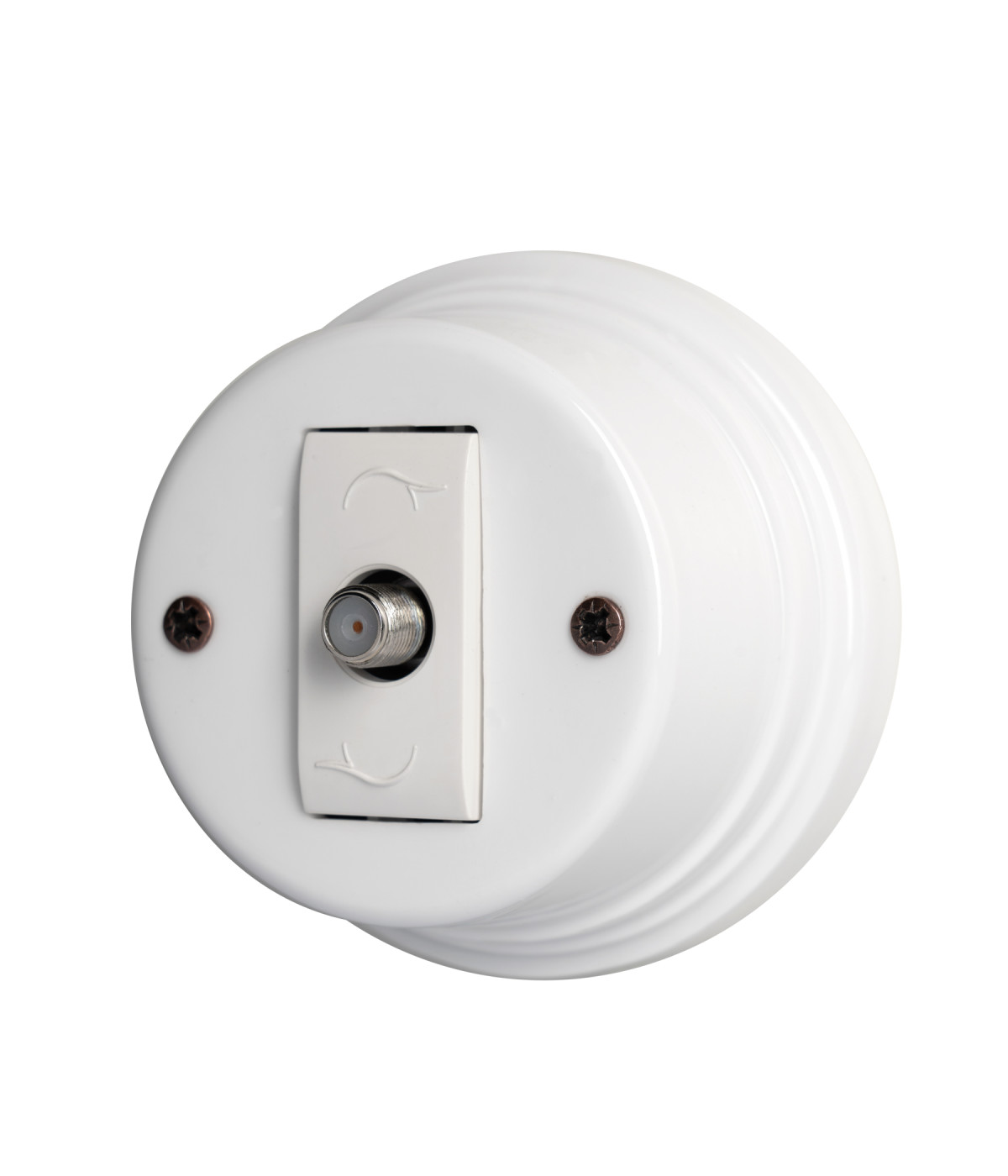

VISTA 1 - Porcelain coaxial socket TV/SAT F
Porcelain coaxial socket TV/SAT F
Screws and dowels included in the package.
The cover in porcelain has two input/output holes for cables with a maximum diameter of 10mm.
Art. 40.656 - ean 8051779406564

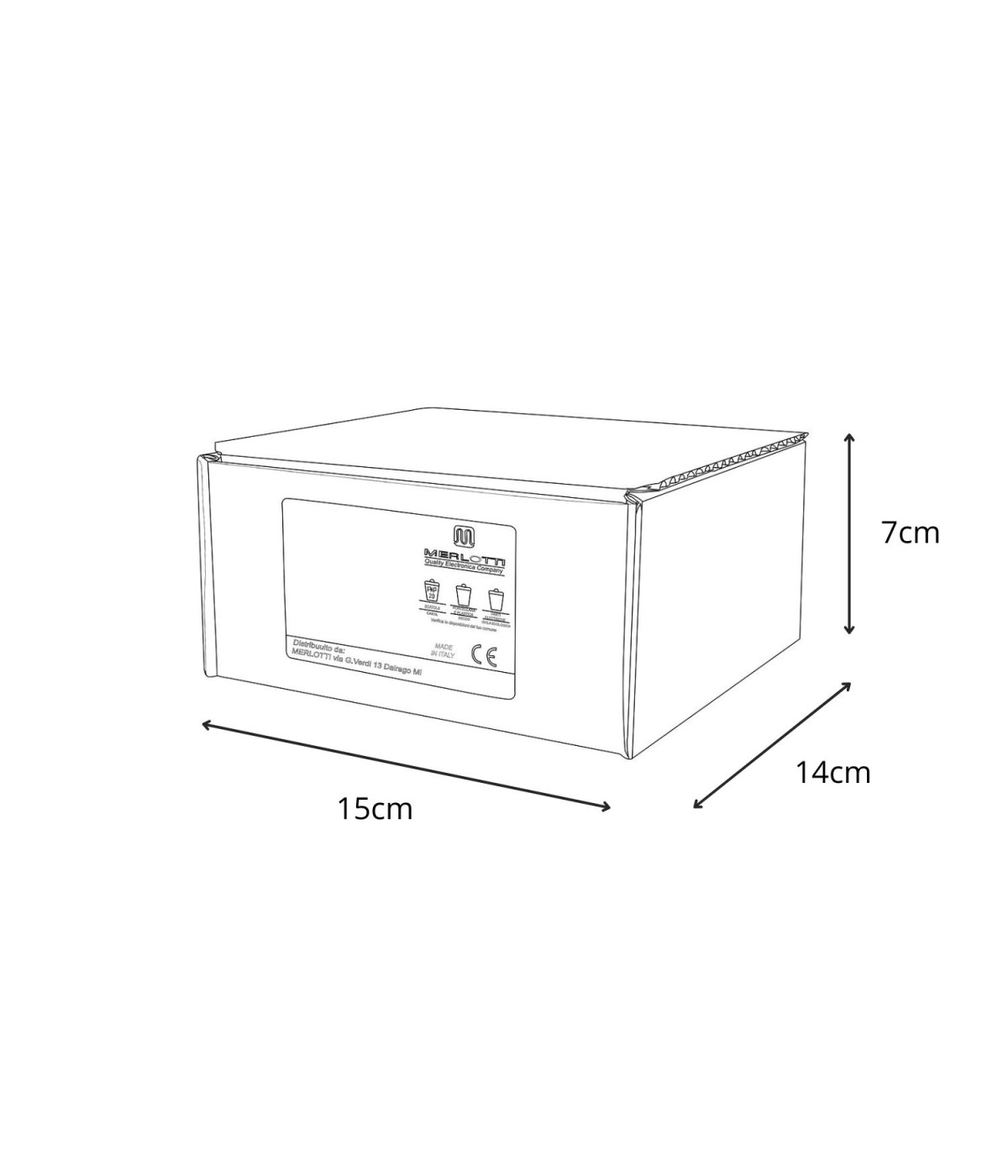

Packaging: Box 1 pz.
For installation it is recommended to contact specialised personnel
ONLY FOR INDOOR USE
COLOUR
PACKAGING
Purchasing on the merlotticavi.it website is reserved only for registered companies.
The minimum order amount is €100.
Technical data
| Ingress protection: | IP20 |
|---|---|
| Connection type: | Screw terminals |

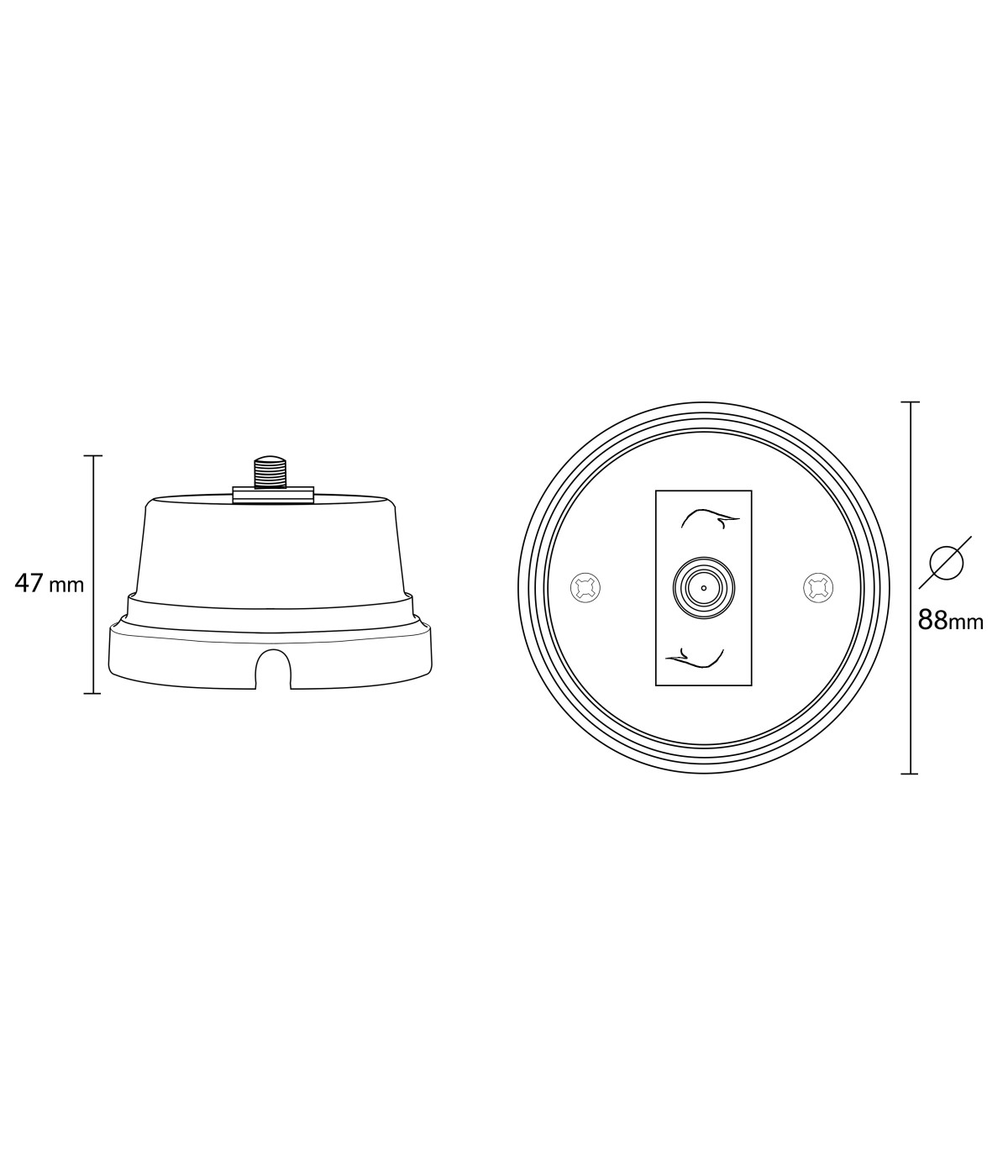

| Size: | Ø 88mm – H 47mm |
| Material: | Porcelain |
| Color: | Shiny white |
| Holes for cable entry: | 2 |
| Product Type: | Coaxial TV socket |
Other information
Aggiungi qui il testo dell’intestazione
Screws and dowels included in the package.
The product can be mounted on a wall with an exposed cable or
integrated into the existing system via a rear inlet hole.
For installation it is recommended to contact specialised personnel
ONLY FOR INDOOR USE
