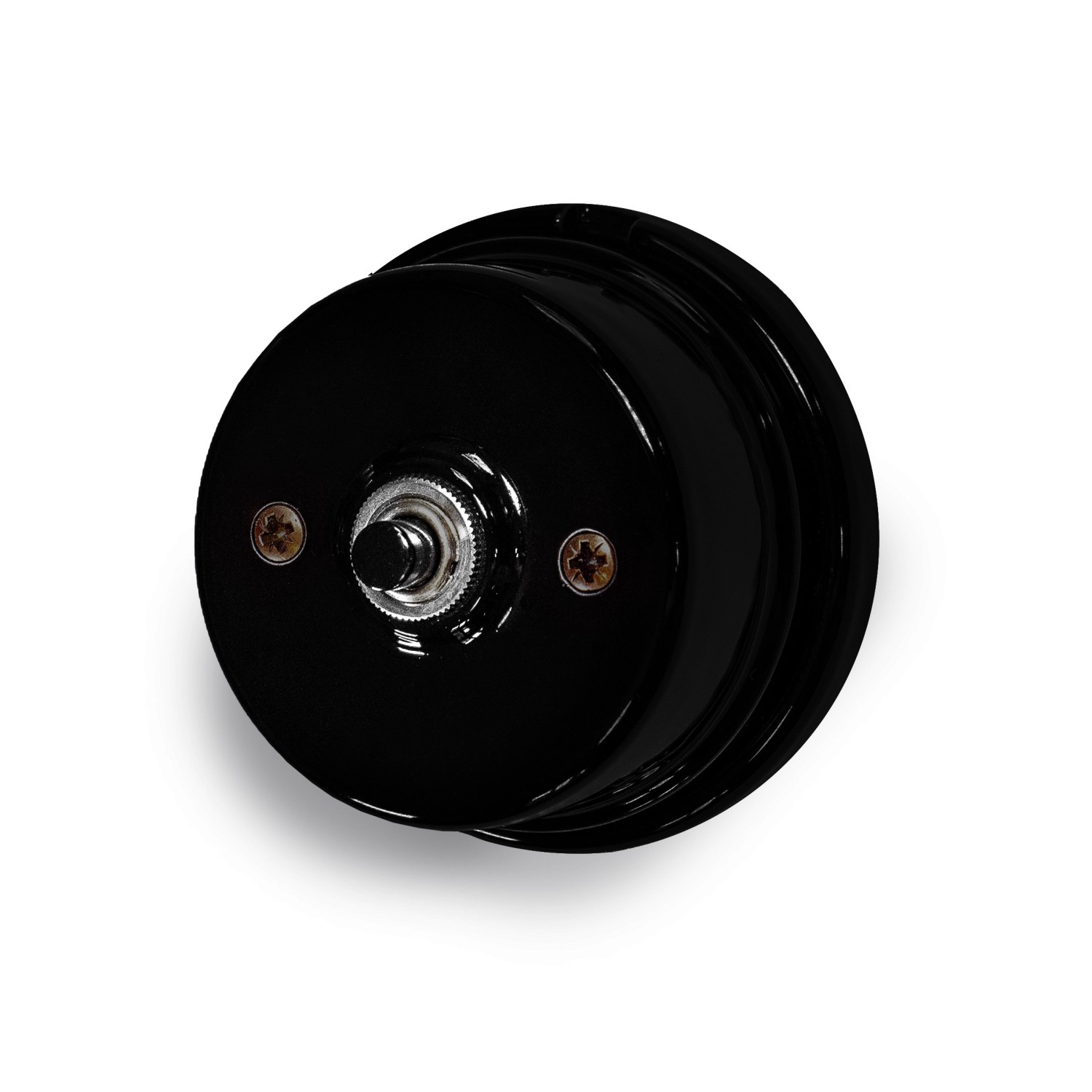

Porcelain push button Black
Porcelain push button
2A - 250V
Art. 40.456 - ean 805177940404560
Packaging: Box 1 pz.
For installation it is recommended to contact specialised personnel
ONLY FOR INDOOR USE
UE DECLARATION OF CONFORMITY
BLACK PUSH BUTTON
TECHNICAL DATA SHEET
TECHNICAL DATA SHEET PUSH BUTTON
COLOUR

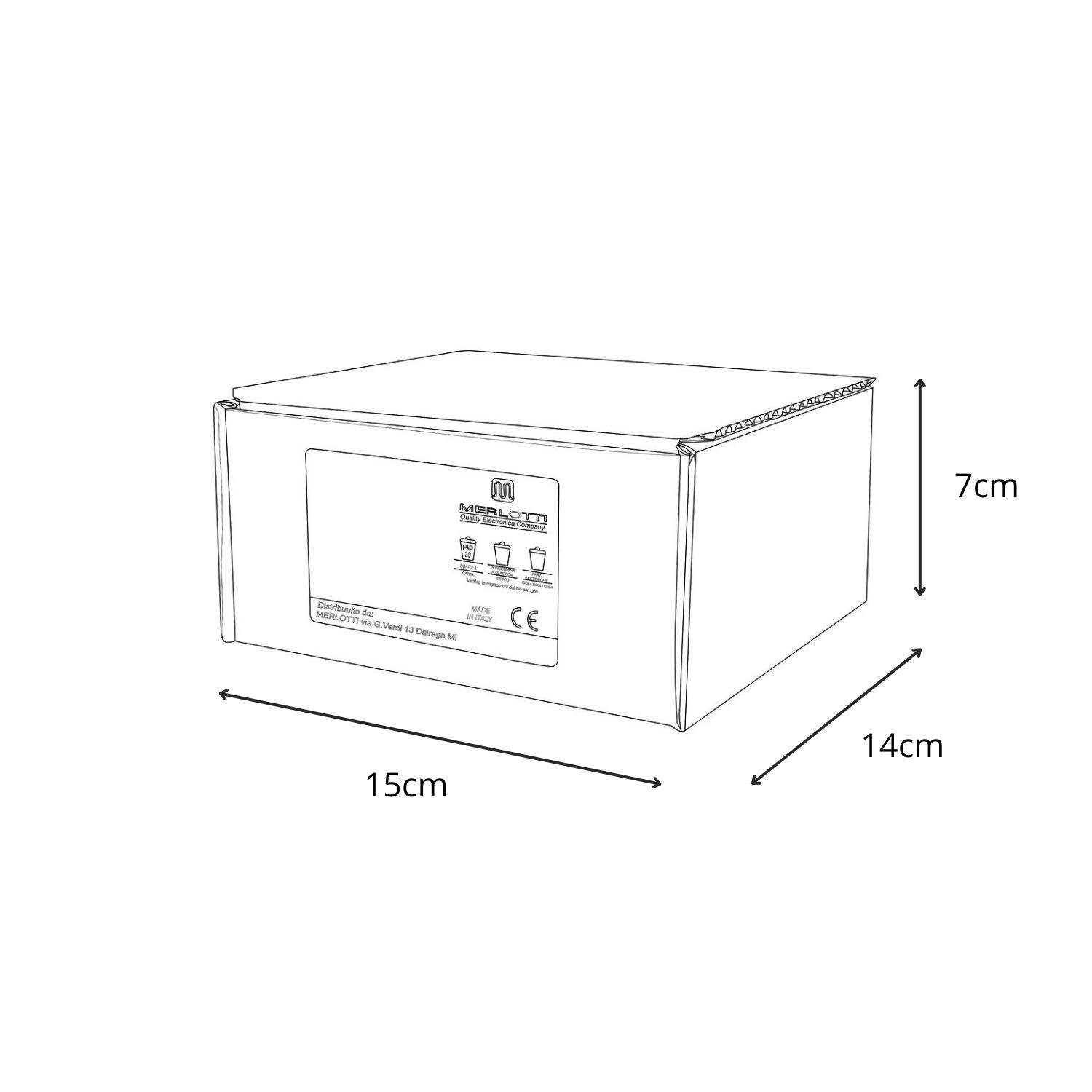

PACKAGING
Purchasing on the merlotticavi.it website is reserved only for registered companies.
The minimum order amount is €100.
Technical data
| Rated voltage: | 250V AC |
|---|---|
| Rated current: | 2A |
| Ingress protection: | IP20 |
| Connection type: | Terminal 6,3x0,8mm |
| Size: | Ø 80mm – H 50mm |
| Material: | Porcelain |
| Color: | Shiny black |
| Holes for cable entry: | 1 |
| Product Type: | Push button |
Other information
Aggiungi qui il testo dell’intestazione
Screws and dowels included in the package
Material: Our items are made of high impact resistant porcelain, with high electrical and thermal insulation
For installation it is recommended to contact specialised personnel
ONLY FOR INDOOR USE
